Certification:

• UL & CUL Listed to standard UL 305

• Passed 100,000 Cycle Test

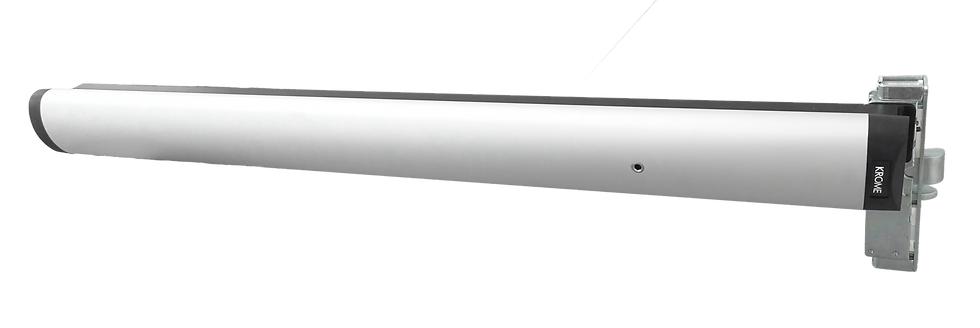

Material: Extruded anodized aluminum push bar, steel springs

Latch:

• Solid Zinc

• 5/8” throw

Backset:

• 1-1/8” (standard)

• 31/32” available for select finishes

• 1-1/2” available for select finishes

Strike: Aluminum cast strike cup with stainless steel strike plate

Projection:

• Push bar projects 2-11/16” from door surface at rest

• Push bar travel 19/20” parallel to floor

Stile width: Based on backset of the mortise lock

Handing:

• Left Hand Reverse (LR)

• Right Hand Reverse (RR)

Door Thickness: 1-3/4” standard

Door Width:

• 36” field adjustable to 30” (standard)

• 42” available for select finishes and backsets

• 48” available for select finishes and backsets

Mounting Height: Recommended installation at 39-1/8” from finished floor to center line of push rail

Fasteners: Comes with sheet metal and machine screws

Cylinder: 2 Keys supplied standard

Dogging: Hex key

Finishes:

• Aluminum (689)

• Black (693)

• Bronze (695)
