EXIT DEVICE ACCESSORIES

74FP

FACEPLATES FOR 74DL

Installation Sheet
Template

The 74FP faceplates are compatible with the 7400 mortisse lock assemblies.


Material: Aluminum

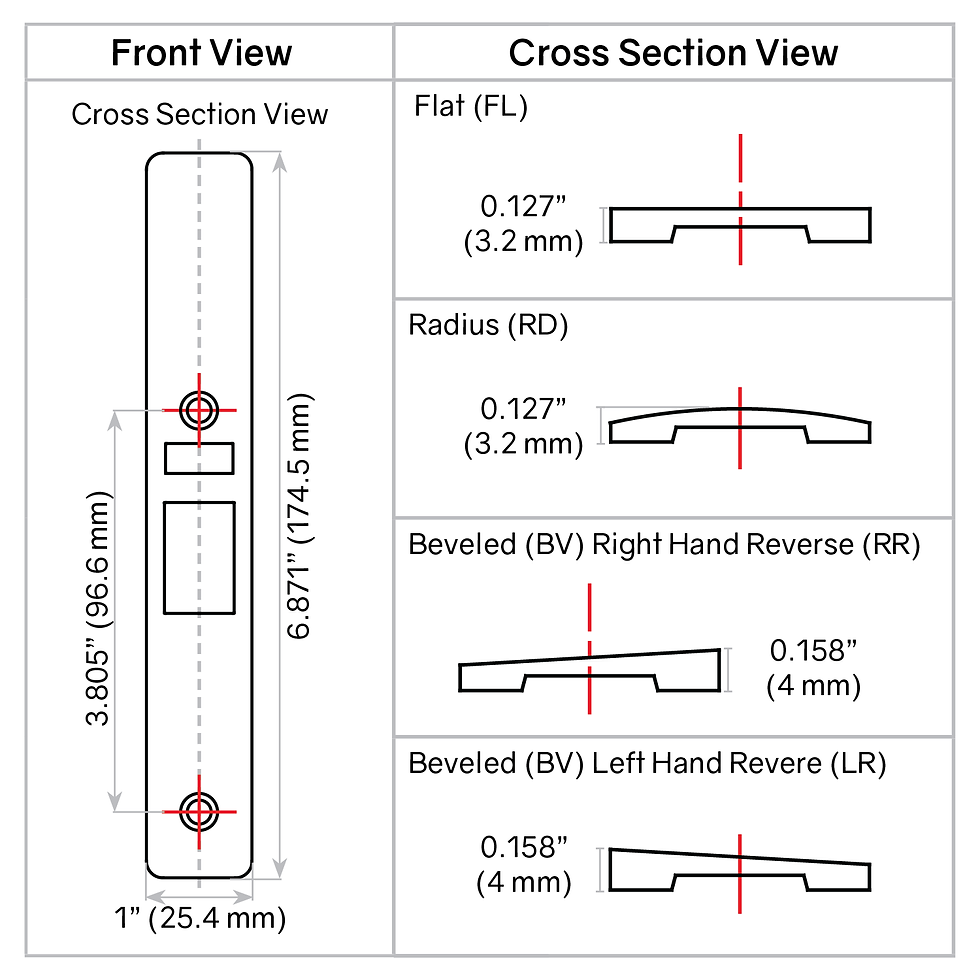

Size: 1” (25.4 mm) x 6-7/8” (175 mm)


Type:

  • Bevel (BV)

  • Flat (FL)

  • Radius (RD)


Finish:

  • Aluminum (689)

  • Black (693)

  • Bronze (695)


Screws: Comes with x2 Machine screws (Flat head philips #8-32)
